Thermal Printer: Adding Logo to Receipts (Bixolon SRP 350III)

How To Update Company Logo On Bixolon Printers

NOTE: This guide is intended for advanced users. For assistance, please call our support team at 1-855-673-3700, or email support@precisionpos.com.

Printing NV image using Windows driver

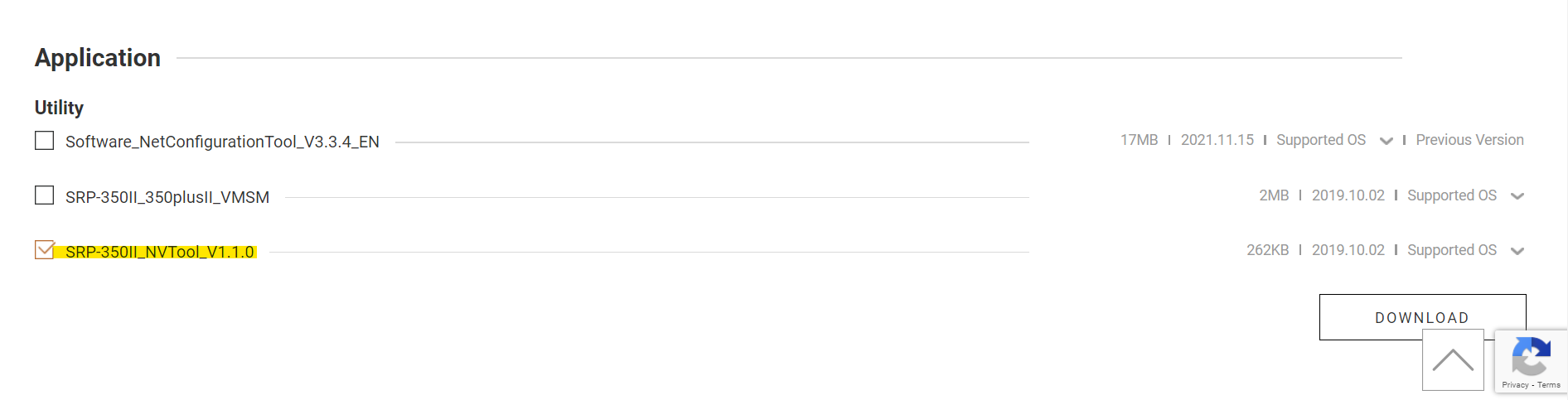

1. Download the NV Image Down Load Tool from the homepage:   Download NV Tool

2. Download the image to the printer using the NV Tool by selecting "Open File"



3. Move to the “Additional Command” tab from the Driver Properties window, and check the NV Image & Commands tab.
4. ‘NV image and Commands’ are the commands to be executed before and after the printing, respectively.
5. The format of the command to printer NV image is as follows.
            - Enter the command as shown in 5-3 and click the [OK] button.
SRP-350II_img9

5-1. Command: FS p n m
5-2. Hex: 1C 70 m n
5-3. \x1C\x70\x01\x00
*Download and refer to the command manual for details about the command. (attached to this KB)
